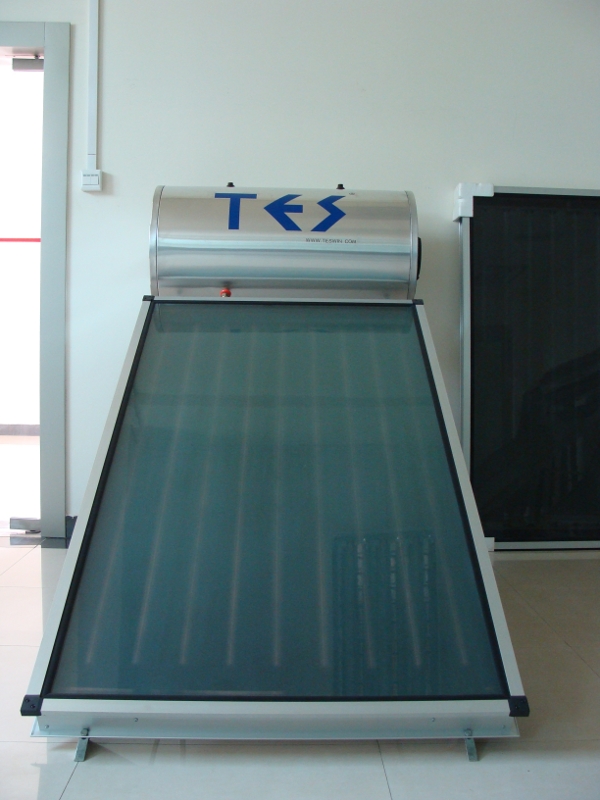

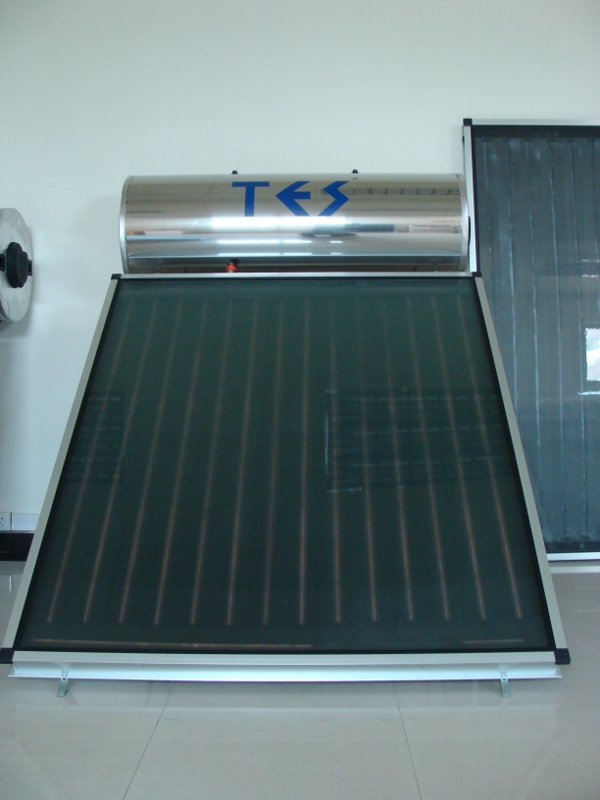

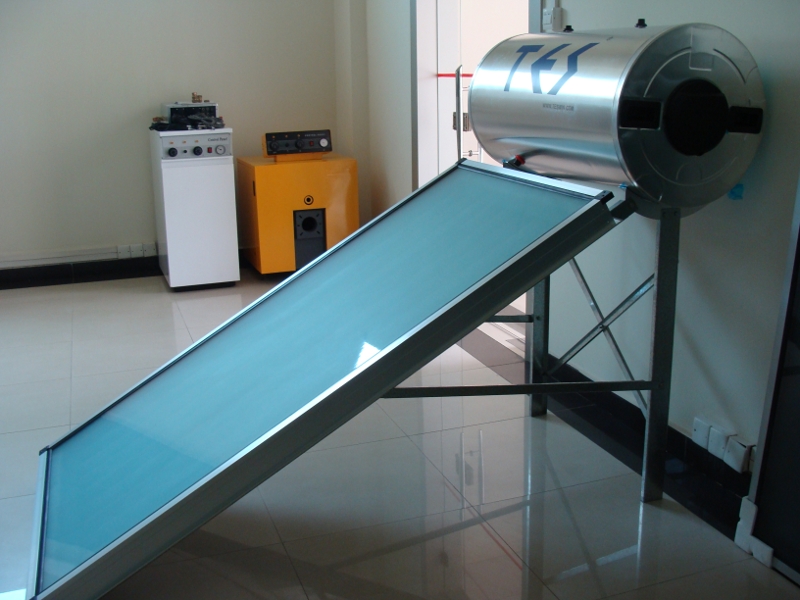

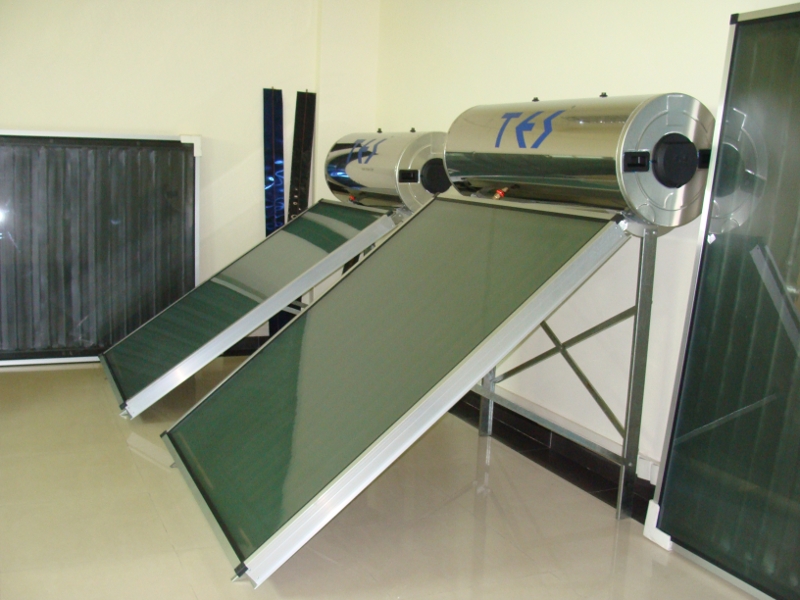

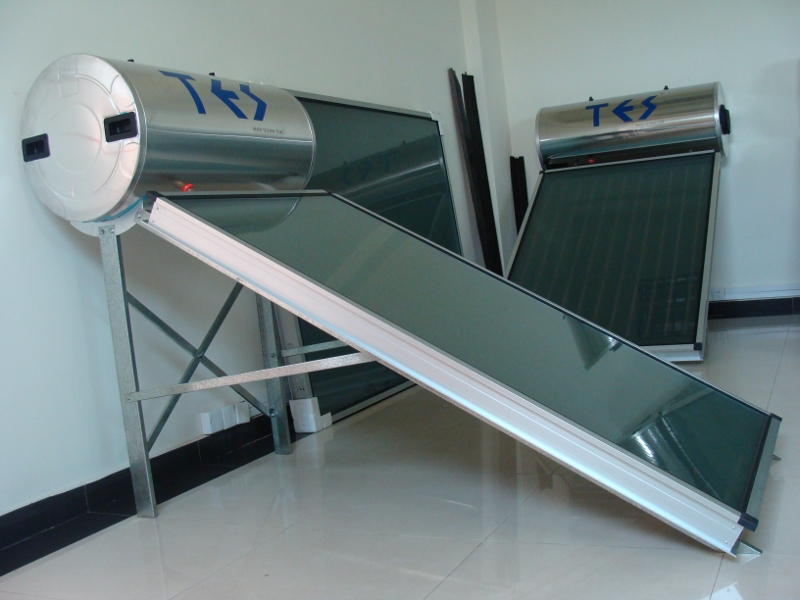

The TESHYPERION Series solar water heater systems are compact boilers, easy to install, more aesthetic with no piping visible between the collector and the water storage tank. These systems utilize the high quality and technology integrated in the rest of T.E.S. solar water heater systems but also offer higher efficiency than the previous solar collectors integrating a new absorber design.

TESHYPERION LE
TESHYPERION HE
TESHYPERION ST
TESHYPERION STi
Specifications
Models
Photos
Brochure

TESHYPERION LE™ Series

The TESHYPERION LE series is made of Anodized Aluminum External cover and Black selective paint aluminum fin, copper pipe sollar collector absorber. This is the most cost effective series but at no expense of quality. The black selective paint absorber offers the exact same absorbing capability as the higher-end Black Selective Chrome copper absorber but has a slightly higher amount of thermal losses.

TESHYPERION HE™ Series

The HE stands for High Efficiency. This series utilizes the same water tank as the TESHYPERION LE series but uses a Black Selective Chrome copper fin, copper pipe solar collector absorber. This is the top range of solar collectors offering stagering efficiency, minimal thermal losses, and the highest absorption capability than any other type of solar absorber coating. The TESHYPERION HE series is the series with the longest lifetime and highest efficiency but at the expense of the beauty compared to the ST and STi series which use a Stainless Steel Mirror outside cover material for the water tank.

TESHYPERION ST™ Series

The ST stands for Stainless Steel as this series utilizes a Mirror Stainless steel covered water storage tank. For the solar collector it utilizes the same Black Selective paint aluminum fin, copper pipe absorber as the TESHYPERION LE series.

TESHYPERION STi™ Series

The TESHYPERION STi series is the top of the range! Superb beauty and efficiency in one compact, easy to install package. This stunning solar water heater utilizes the Mirror Stainless steel outside cover water storage tank, and the highest efficiency Black Selective Chrome all-copper collector. This is the true "god of light" and son of sky!

Technical Information of TESHYPERION Series™ solar water heater storage tank

EN 12975-2 and ISO 9806-1

EN 12975-2 and ISO 9806-2

External casing	:Anodized aluminium or stainless steel mirror
Tank's insulation	:Polyurethane foam 50mm
Cylinder's Material	:low carbon steel 2.5mm, stainless steel(optional), copper(optional)
Jacket's Material	:low carbon steel 1.5mm, stainless steel(optional), copper(optional)
Cylinder's internal protection	:Ti-Nano (Titanium nano-technology) (*only on low carbon steel cylinder)
Additional protection	:magnesium rod
Max working pressure	:1.0Mpa
Test pressure	:1.9Mpa
Electric resistance	:stainless steel or copper
Thermostat	:bipolar of four contacts(20°C to 80°C)
Power rate	:available from 0.8kw-4kw

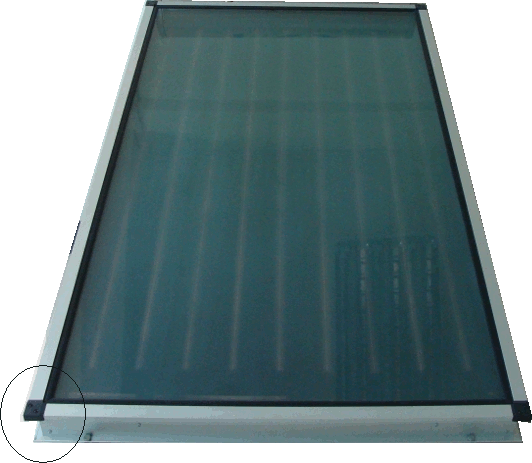

Technical Information of TESHYPERION Series™ solar collector

	1.External frame:	Anodized aluminum profile
	2.Water-tightness:	a)EPDM rubber b)transparent silicone
	3.Cover:	solar tempered glass/low iron
	4.Absorber:	copper or aluminum fins with /black paint or black chrome coating/ultrasonic welding
	5.Absorber tubes:	copper pipes Ø10&22(risers and headers)
	6.Side insulation:	glass wool or rock wool 30mm
	7.Back insulation:	glass wool 50mm or rock wool
	8.Back side:	galvanized sheet

EXTERNAL DIMENSIONS-SOLAR COLLECTOR

MEASUREMENT (MM)	HEATED AREA (M²)	MAX WORKING PRESSURE	TEST PRESSURE	TOTAL THERMAL EFFICIENCY	TOTAL THERMAL LOSSES
1800 x 1000 x 90	1.8m²	1.0Mpa	1.4Mpa	97%±2%	5%±3%
2000 x 1000 x 90	2.0m²	1.0Mpa	1.4Mpa
2000 x 1250 x 90	2.5m²	1.0Mpa	1.4Mpa
2000 x 1500 x 90	3.0m²	1.0Mpa	1.4Mpa
2000 x 2000 x 90	4.0m²	1.0Mpa	1.4Mpa
Specifications are subject to change without prior notice.

Available Models

Model Name	Capacity	Collector Options
TESHYPERION LE, HE, ST, STi 120	120 liters	1 x 1.8m², 1 x 2.0m²
TESHYPERION LE, HE, ST, STi 160	160 liters	1 x 2.0m², 1 x 2.5m², 1 x 3.0m²
TESHYPERION LE, HE, ST, STi 200	200 liters	1 x 2.5m², 1 x 3.0m², 1 x 4.0m², 2 x 2.0m²
TESHYPERION LE, HE, ST, STi 250	250 liters	1 x 3.0m², 1 x 4.0m², 2 x 2.0m², 2 x 2.5m²
TESHYPERION LE, HE, ST, STi 300	300 liters	1 x 4.0m², 2 x 2.5m², 2 x 3.0m²
