The new series of boilers of Tianke Energy Saving
Ltd has been examined and designed based on the latest needs in the energy sector.
The products which TES Group Limited produces
are reliable and 93% efficient, greatly reducing
oil-gas consumption which results in an environment friendly operation.
The TES boiler offer energy saving, high efficiency, minimum loss, strong insulation,
modern design, easy maintenance, noiseless operation, manufacture specifications
of the newest type, strong construction, examined designing which gives the
ability for an easy placement, low investment cost, guaranteed by a great manufacturer,
guaranteed by one of China’s largest factories with European perception
and know-how.

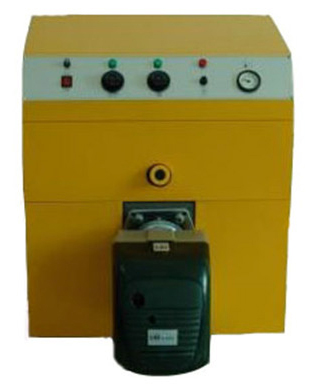

STEEL BOILER OIL/GAS
The boiler is made of steel ST 37-2/DIN17.100,ideal material for boilers.
It is of high back pressure, tubular three-way exhaust gases and of horizontal
operation. It is examined regarding its dimensions of the combustion chamber,the
number and cross-section of the tubes, in order to fully exploit the heat
during combustion with minimum loss.The tubes are constructed with material
of 3.5MM thickness according to DIN17175, the only suitable material to be
used for boilers production in order to bear high pressures and temperatures.ALL
the construction conforms to EN14394 standard.
NOISELESS OPERATION
The boiler owns special new types of turbolating the exhaust gases flow, increasing
the performance and decreasing the boiler's back pressure. All these, in accordance
with the boiler's coating with insulation and excellent insulated covers,
assure the boiler's most noiseless operation.

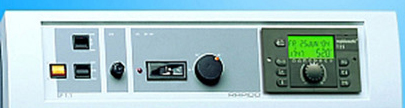

CONTROL PANEL
The control panel which is suitable for modern operation of the boiler includes
a burner thermostat, circulation pump thermostat, safety thermostat, main
switch, indicators and element of water temperature indication.The control
panel, according to the client's preference,could be either mechanic or electronic
with digital indication and microprocessor which supervises all the basic
boiler and circulator's operations.
INSULATION
The insulation of TES boilers is double new series.It is made of glass wool
lining of 50mm thickness with a layer aluminium in the body of the boiler
and glass wool lining of 30mm thichness at the metal covers.The boiler door
is internally protected by a lining of refractory ceramic material and externally
by glass wool and metal cover.All these assures the smooth operation of the
burner without loss and the steady temperature in the burning hearth.

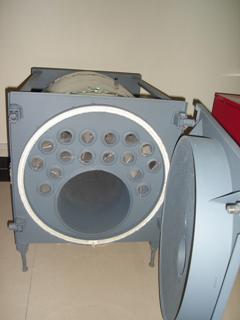

EASY MAINTENANCE
The boiler maintenance is simple with easy access to all the boiler's part's
as it owns a door with hinges which opens right or left so that the access
in the burning body and the front tube plate is immediate.At the rear end
of the smoke collector,there is a cleaning residues of combustion.
EFFICIENCY
Perfect oil or gas combustion is ensured due to the ultra modern combustion
chamber design,the exhaust gases turbolators made of steel and the ergonomic
construction and these result to a product with the most modern specifications.The
91%-93% efficiency assures energy saving with the most minimum exhaust gases
to the pipe and the environment.
